Bently Nevada 2300

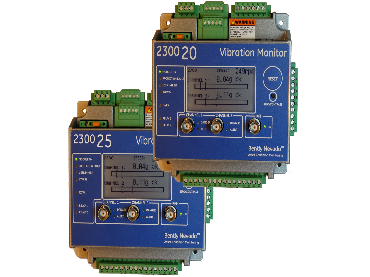

GE's Bently Nevada 2300 Vibration Monitor Series provides cost-effective vibration monitoring and protection capabilities for non-critical machinery. It is comprised of the 2300/20 and 2300/25 monitors that are specifically designed to provide continuous monitoring and protection for Balance of Plant equipment.
With System 1 Evolution connectivity, The 2300 Vibration Series Monitors enable condition based maintenance of assets in a wide range of industries including: Oil & Gas, Power Generation, Water Treatment, Pulp & Paper, Manufacturing, Mining, Cement, and other industries.
Features and Benefits
NEW: The 2300 Monitor Series is now available with Proximitor and Velomitor Sensor Capability.
With the 2300 Monitor Series, you'll enjoy the following product features and benefits:
• Next generation of low cost, entry level condition monitoring
• State of the art electronics and signal processing
• Delivers economical PdM condition monitoring and protection for low
and mid-level criticality assets
• Continuous monitoring and protection
• Self contained, compact, stand-alone vibration monitoring and protection,
suitable for skid mounting
• Robust, compact, self-contained two channel device
• 127 x 127 x 76 mm (5x5x3 in.) device size
• Based on proven and reliable Bently Nevada 3500 monitor circuit design
• State of the art electronics and signal processing
• Low wiring and installation cost
• Industry-leading number of measurements per channel with independent
alert and danger set points
• Key measurements (Direct, 0-pk, pk-pk, True RMS, Derived pk, integrated
direct pk) real-time provided with alarm configuration
• Convenient access to diagnostic data
• Diagnostics and balancing capability using a portable data collector
• Three 1:1 buffered transducer BNC outputs (vibration and speed signals)
with short circuit and EMI protection
• Key machine and monitor information clearly displayed at the monitor
• Local monitor status LEDs
• Local display showing overall values and speed
• Overall data and event display
• Quick and easy monitor configuration using Bently Nevada Monitor • Configuration (BNMC) device configuration software
• Low or high voltage power source
• 24VDC and optional 240/110V DIN rail mounted power supplies
• Secure, tamper proof configuration management
• Local configuration lockout and remote configuration lock
(two dedicated discrete inputs)
• Communications data pathway to other operating systems
• Ethernet connectivity with Modbus functionality
• Wide range of configuration options, including high vibration protection
• Two dry contact relay outputs with programmable set points using BNMC
• Easy-to-order with single part number kits
• Higher signal fidelity
• 24-bit ADC conversion
• Configurable 4-20 mA output available on the 2300/20 monitor
• Trendmaster SPA interface configuration available on
the 2300/25 monitor
• Proximity sensing for use on fluid film bearing machines
• Velometer sensing for use on slow speed machines
Bently nevada 2300
bently nevada 2300
Bently Nevada
Model
<
>
18~36VDC, max 7.5W
DC Input
0.2 Hz to 20 kHz
Channel types - Configurable
Bandpass filter:
5 to 1000 mV/g
Channel types -Scale Factor range
2 to 80 g peak
Channel types -Full scale range
3.3 mA ± 5%
Channel types -Current Sink Source
-21 to -24 VDC
Channel types -Open Circuit Voltage
0.2 Hz to 20 kHz
Velocity - Configurable
Bandpass filter
5 to 1000 mV/in/s
Velocity - Scale Factor range
0 to 50 in/s peak
Velocity - Full scale range
