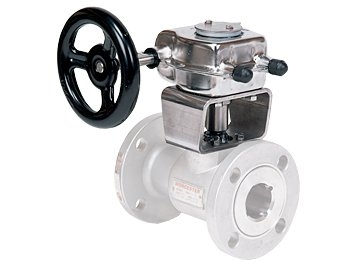

300 Quarter-turn Gear Series
The Rotork Gears Series ‘300’ quarter-turn gear operators are the first of their kind to use metal forming technology in their manufacture. This technology dramatically reduces manufacturing costs and allows the operator to be produced from stainless steel.
Application
Rotork Gears series ‘300’ operators are quarter-turn devices intended for the operation of ball, plug and butterfly valves as well as power and process dampers. The unique sintered steel drive insert allows these gear operators to be fitted directly to most valve stems. The handwheels are available in a variety of sizes for smooth and easy operation. The stainless steel operators are well-suited for applications in highly corrosive environments as well as in breweries, pharmaceutical plants and sanitary facilities.
- Stainless Steel housing
- Stainless Steel input shaft
- Three models up to 1000 Nm (8,860 lbf.in) output
- Rugged construction
- Sealed to IP65
- Lightweight
- Replaceable stem drives (307-310)
- Patented, pressed-metal technology
- Optional Flexible Extensions
- Stroke: 0 – 90° (± 5° adjustable)
- Enclosure: Weatherproof to IP65
- No. of Models: 3
- Torque Range: 250 to 1000 Nm (2,200 to 8,860 lbf.in.)
- Temperature: -20 to +120 °C (-4 to +250 °F)
- Housing: 304 Stainless Steel
- Input shaft: 304 Stainless Steel
- Gear segment: Aluminium Bronze
- Stroke Adjusters: 304 Stainless Steel
- Indicator: 304 Stainless Steel
- Coating: None-100% 304
- Stainless Steel (polished)
