Chemical Transfer Packages
Pump systems for transportation of large volumes of various chemicals
Standards & Certification
Our QA/QC systems meets ISO 9001:2015 and SCC*
Instruments according to latest requirements (IECEx)
Markets
Chemical & Petrochemical
Oil & Gas

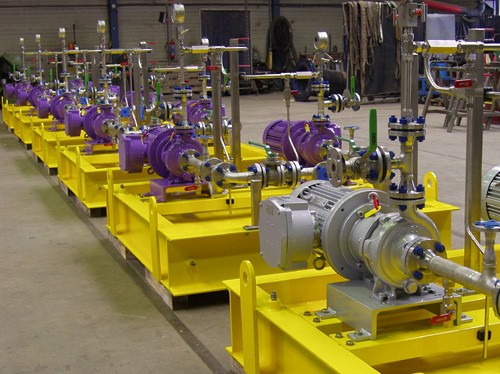

These pumps and pump packages are used to transfer chemicals from the storage area to the chemical tanks. Regularly large volumes of chemicals, diesel, wash water and drains are transferred. This can be accomplished by Air Operated Double Diaphragm (AODD) pumps, sealed and sealless centrifugal pumps or progressive cavity pumps.
Working Temperature Range:
• 3″ -20°C to +80°C (-4°F to +176°F)
Working Pressure:
• Up to 12 bar (174 psi) maximum inlet pressure
• Minimum pilot pressure valve size dependent
Ports NPT (BSP Option Available):
• 3″ NPT
• Pilot Ports 1/8 or 1/4″ (valve size dependent)
Gases – Filtered lubricated or non lubricated air, inert gas, sweet (natural) and sour gases
Liquids – Low pressure hydraulic, mineral oil or water (please consult Rotork)
Construction Materials:
Body & trim: 316L Stainless Steel
Springs: 316 Stainless steel
3″ Nitrile (Standard Option)
